If you’re looking for the best NEC 230.85 emergency disconnect switches for safety and compliance, I recommend considering options like waterproof outdoor switches, fused disconnects, rotary selectors, and lockable push buttons rated for high voltages and currents. These switches often feature durable materials, weatherproof ratings like IP66, and secure locking mechanisms. Keep in mind the specific application requirements to guarantee safety and code compliance. Continue exploring and you’ll discover more expert tips for choosing the right switch.
Key Takeaways
- The list includes high-quality switches with ratings up to 240V and 60A, suitable for NEC 230.85 compliance.
- Features waterproof, dustproof, and weather-resistant designs ideal for outdoor and harsh environments.
- Switch types include non-fusible, rotary, push button, and lockable options for various safety applications.
- Proper labeling and installation ensure compliance with NEC 230.85 emergency disconnect requirements.
- Each product emphasizes durability, safety features, and ease of use for reliable emergency disconnection.
32Amp AC Disconnect Switch (690V, IP66 Waterproof)
If you’re looking for a reliable emergency disconnect switch suitable for outdoor use, the Amp AC Disconnect Switch (690V, IP66 Waterproof) is an excellent choice. It features a 32Amp rating and 690V AC capacity, making it suitable for various high-voltage applications. Its 4-pole rotary isolator provides quick on/off switching, ideal for safety and machine control. With an IP66 waterproof rating, it offers robust protection against dust, rain, and hose-directed water, ensuring durability outdoors. Crafted from flame-retardant PC, it withstands high temperatures and provides excellent insulation. This switch is perfect for generators, substations, and power distribution systems needing reliable emergency disconnection.
Best For: professionals and technicians requiring a durable, outdoor-rated disconnect switch for high-voltage power systems, generators, and motor control applications.
Pros:
- IP66 waterproof rating provides comprehensive protection against dust, water, and harsh environmental conditions
- Suitable for high-voltage applications up to 690V AC, with a 32Amp rated capacity and load breaking capabilities
- Made from flame-retardant PC material offering high-temperature resistance and excellent insulation
Cons:
- May be heavier and bulkier than smaller disconnect options, affecting ease of installation in tight spaces
- Limited to 4-pole configurations, which might not suit all specialized electrical setups
- Requires proper grounding and professional installation to ensure safety and compliance
16 Pack NEC Compliant Emergency Service Meter Disconnect Labels (White on Red)
Looking for reliable labels that guarantee compliance and visibility during emergencies? The 16-pack of NEC compliant Emergency Service Meter Disconnect Labels (White on Red) is exactly what you need. Made from durable vinyl with strong adhesive and extra lamination, these labels resist weather and UV damage. They’re compatible with load centers, main disconnects, transformers, and more, making them versatile for various applications. The clear, bold white-on-red design ensures quick recognition, and the bilingual options (French and Spanish) enhance accessibility. Perfect for replacing old labels or new installations, these labels help you stay compliant with NEC codes and improve safety during critical moments.
Best For: electricians, electrical contractors, and facility managers seeking durable, NEC-compliant emergency disconnect labels for various electrical panels and devices.
Pros:
- Made of weather-resistant vinyl with strong adhesive and extra lamination for durability.
- NEC compliant with a clear, bold white-on-red design for quick identification.
- Bilingual options in French and Spanish increase accessibility and safety.
Cons:
- Limited to white on red color scheme, which may not suit all aesthetic preferences.
- Only available in a 16-pack, which might be excessive for small projects.
- Product availability and pricing may vary, requiring comparison shopping.
Supplying Demand 84-25175-04 Disconnect Switch Fused 230V 30A Top Open
The Supplying Demand 84-25175-04 Disconnect Switch is an excellent choice for professionals seeking a reliable, fused switch rated at 230V and 30A, designed specifically for outdoor applications. Its rainproof NEMA 3R steel enclosure ensures durability and protection against weather elements. The top-open door style allows easy access for maintenance or emergency shutdowns, while multiple knockouts facilitate flexible wiring options. This switch provides a safe way for technicians to de-energize high-voltage equipment without accessing circuit breakers, enhancing safety during servicing or emergencies. Compatibility with major brands makes it a versatile, dependable solution for various high-voltage disconnect needs.
Best For: professional electricians and technicians needing a durable, weatherproof outdoor disconnect switch for high-voltage applications.
Pros:
- Provides reliable safety with a fused 230V, 30A switch suitable for outdoor environments
- Steel rainproof NEMA 3R enclosure offers excellent weather resistance and durability
- Top-open door design allows quick and easy access for maintenance and emergency shutdowns
Cons:
- Compatibility may require verification with specific equipment brands and models
- Installation requires proper wiring knowledge due to high-voltage specifications
- May be more expensive than basic disconnect switches due to its robust construction and features
APIELE 22mm Emergency Push Button Switch for Outdoor Use
For outdoor safety applications requiring reliable emergency shutdowns, the APIELE 22mm Emergency Push Button Switch stands out with its IP67 waterproof rating. Its durable construction makes it ideal for harsh environments like charging stations and outdoor equipment. Featuring a 40mm push button and a 22mm mounting hole, it fits panels up to 6mm thick. The switch offers a latching push-lock action with turn-to-release, and its circuit configuration includes 1NO and 1NC silver contacts rated for 10A at 440V. With a compact design, screw terminals, and a robust build, this switch ensures safe, reliable operation outdoors.
Best For: outdoor electrical installations, emergency shutdowns, and harsh environment control panels requiring waterproof and durable push button switches.
Pros:
- IP67 waterproof rating ensures reliable operation in outdoor and wet environments
- Robust construction with silver contacts rated for 10A at 440V for high current capacity
- Easy panel mounting with a 22mm hole and compatibility with panels up to 6mm thick
Cons:
- Fixed circuit configuration (1NO 1NC) may limit customization for specific applications
- Slightly larger size (40mm button diameter) may not suit very compact control panels
- Requires proper wiring and installation to maintain waterproof integrity in outdoor settings
ED125-36 48V 125A Emergency Disconnect Stop Switch for EZ30 E30 D40 EZ40
If you need a reliable emergency disconnect switch for your EZ30, E30, D40, or EZ40 electric forklift stacker, the ED125-36 48V 125A model stands out as a top choice. Designed specifically for these models, it guarantees quick and safe shutdowns during emergencies. The switch features a bold red and black design, made of durable ABS and metal materials, enhancing visibility and longevity. It’s easy to install and includes one emergency stop switch, offering peace of mind during operation. This switch is essential for compliance with safety standards and provides reliable performance when every second counts.
Best For: operators and maintenance teams of EZ30, E30, D40, or EZ40 electric forklift stackers seeking a reliable emergency stop switch for safety compliance and quick response during emergencies.
Pros:
- Specifically designed for EZ30, E30, D40, EZ40 forklift models for perfect compatibility
- Durable construction with ABS and metal materials ensures longevity and visibility
- Easy to install and operate, providing quick shutdowns when needed
Cons:
- Color may vary slightly due to lighting and display differences
- Dimensions and weight details are not specified, potentially affecting installation planning
- Includes only the emergency stop switch, so additional components may need to be purchased separately
Siemens WN2060U Non-Fused AC Disconnect
When selecting an emergency disconnect switch, the Siemens WN2060U stands out due to its outdoor-rated design and robust 60 Amp capacity. This non-fused AC disconnect is UL listed and ideal for outdoor applications like air conditioning units. Its pullout design makes disconnection straightforward, while brass or copper contacts guarantee reliable conductivity. At 8L x 6W x 3H inches and weighing only 2.5 pounds, it’s compact yet durable. With a maximum voltage of 240V, it meets safety standards and provides a dependable means to disconnect power quickly. Customers appreciate its ease of use and durability, making it a top choice for safety and compliance.
Best For: homeowners and technicians seeking a reliable, outdoor-rated disconnect switch for air conditioning units and other electrical equipment requiring quick and safe disconnection.
Pros:
- Outdoor-rated and UL listed for safety and durability
- Easy pullout design for straightforward disconnection
- Compact and lightweight at 2.5 pounds, suitable for various installation spaces
Cons:
- Non-fused design may require additional protection for certain applications
- Limited to 60 Amp capacity, not suitable for higher load requirements
- Only has one wiring hole, which may be restrictive for some wiring configurations
SIEMENS 2P 60A 240V General Duty Safety Switch Indoor, Non-Fusible
The SIEMENS 2P 60A 240V General Duty Safety Switch is an excellent choice for indoor applications requiring reliable and straightforward emergency disconnects. Its 120/240V single-phase design and 2-wire configuration make installation simple and efficient. The double-break, quick-make, quick-break mechanism guarantees positive, reliable switching, while the visible blade confirms proper operation. The durable steel door with embedded ON/OFF indicator protects the controls and prevents fading or scratching, enhancing longevity. Compact and space-efficient, this switch offers safety, durability, and ease of use—making it a dependable option for emergency disconnection needs in various indoor settings.
Best For: Commercial and industrial indoor environments needing a reliable, easy-to-operate emergency disconnect switch for safety and maintenance.
Pros:
- Easy installation with simple 2-wire, single-phase design
- Durable steel door with embedded ON/OFF indicator for long-lasting visibility
- Reliable double-break, quick-make, quick-break switching mechanism ensures safety and positive operation
Cons:
- Limited to indoor use; not suitable for outdoor applications
- Non-fusible design may require additional fusing or protection for certain setups
- Compact size may restrict handling or connection capacity in larger systems

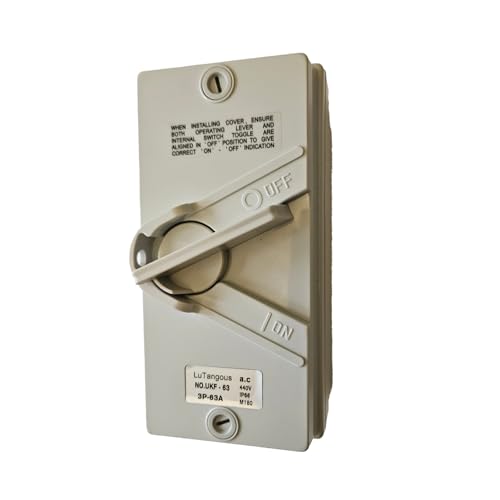

Outdoor Disconnect Switch Box, 440V 63A 3P Waterproof Power Isolator
To guarantee safety and compliance in outdoor electrical installations, the Outdoor Disconnect Switch Box designed for 440V, 63A, 3-phase systems stands out as an ideal choice. Its IP66 waterproof rating ensures protection against water, dust, and mud, making it perfect for harsh environments. The high-temperature resistant silicone gasket and sealing ring provide a strong, reliable seal, while the safety lock and padlock compatibility prevent accidental contact during maintenance. Constructed with durable materials like copper grounding strips and rated for high voltage and current, this switch box offers reliable isolation and safe operation for charging stations, generators, and industrial equipment outdoors.
Best For: industrial facilities, outdoor charging stations, and generators requiring reliable, waterproof electrical isolation solutions.
Pros:
- IP66 waterproof and dustproof rating ensures durability in harsh environments
- High-quality copper grounding strips provide excellent conductivity and corrosion resistance
- Safety features like knob lock and padlock compatibility enhance personnel safety during maintenance
Cons:
- May require professional installation due to electrical complexity
- Limited to 63A current capacity, not suitable for high-power applications
- The sealing and mounting options may need customization for unique outdoor setups
Universal Rotary Selector Switch for 3-Phase Panel (GLD11 40A)
If you need a reliable solution for switching three-phase power in industrial control panels, the Universal Rotary Selector Switch GLD11-40A is an excellent choice. It features a sturdy design with six screw terminals and two positions—ON and OFF—making it easy to control power flow. Rated for up to 690V and 40A, it handles demanding industrial applications with ease. Its compact size (66 x 64 x 105 mm) fits neatly into panels, and its reliable switching performance guarantees safety and compliance. Whether for changeover or control, this switch offers durability and simplicity, making it a trusted component in any professional electrical setup.
Best For: professionals and industrial technicians seeking a reliable, durable switch for controlling three-phase power in industrial control panels.
Pros:
- Robust design with six screw terminals ensures secure connections.
- Rated for up to 690V and 40A, suitable for demanding industrial applications.
- Compact size (66 x 64 x 105 mm) fits easily into various panel setups.
Cons:
- Limited to two positions (ON/OFF), which may not suit complex switching needs.
- Mechanical operation may require manual effort, which could be less ideal for automated systems.
- Only includes basic components; additional accessories or wiring may be necessary for installation.
ED250(CZK250) 48V Emergency Disconnecting Switch Push Button Switch for Car
For those seeking a reliable emergency stop solution tailored to automotive safety, the ED250(CZK250) 48V Emergency Disconnecting Switch stands out. This push button switch is designed specifically for cars, automobiles, and vehicles, ensuring quick and safe power disconnection during emergencies. Made from durable ABS in black and red, it’s a straightforward replacement part with a simple installation process. The switch includes one unit and is compatible with 48V systems. Its primary purpose is to enhance safety by providing an immediate shutdown option, making it a vital component for vehicle safety setups and emergency protocols.
Best For: vehicle owners and automotive safety professionals seeking a reliable emergency stop switch for quick power disconnection.
Pros:
- Easy to install and replace in automotive systems
- Durable ABS construction with clear emergency stopping functionality
- Compact and lightweight design suitable for various vehicle models
Cons:
- Limited to 48V systems; not compatible with higher voltage setups
- Color may vary slightly due to lighting and display differences
- Includes only the switch unit; additional components may be needed for complete installation
Aaon P13760 Disconnect Switch
The Aaon P13760 Disconnect Switch stands out as a reliable OEM replacement designed specifically for professionals seeking safety and durability. Made in the United States, it’s built to guarantee dependable performance while creating comfortable, healthy indoor environments. Its compact size—4 by 4 by 6 inches—makes it easy to install in various settings, and at just 12.8 ounces, it’s lightweight yet sturdy. No batteries are needed, simplifying its use and maintenance. With a strong reputation and a manufacturer’s warranty available, the P13760 offers peace of mind, making it an excellent choice for those prioritizing safety, compliance, and long-term reliability.
Best For: professionals and technicians seeking a reliable, durable disconnect switch for safe electrical installation and maintenance.
Pros:
- Made in the United States, ensuring quality and compliance with standards
- Compact size (4 x 4 x 6 inches) for easy installation in various environments
- No batteries required, simplifying operation and maintenance
Cons:
- Limited to specific applications; may not be compatible with all systems
- Weight of 12.8 ounces, which might be considered slightly heavy for ultra-lightweight setups
- Only available through specific purchase channels, potentially limiting immediate access
Factors to Consider When Choosing NEC 230.85 Emergency Disconnect Switch
When selecting an NEC 230.85 emergency disconnect switch, I focus on key factors like compliance with NEC codes, amperage and voltage ratings, and durability. I also consider how easy it is to install and whether it has safety lock mechanisms for added protection. These points guarantee the switch meets safety standards and fits my specific needs.
Compliance With NEC Codes
Ensuring your emergency disconnect switch complies with NEC 230.85 is essential for safety and legal adherence. The switch must be readily accessible and clearly marked for quick identification during emergencies. Proper placement and installation are critical, following specific NEC guidelines to prevent delays or hazards. The disconnect should be designed for easy operation without tools or technical knowledge, ensuring anyone can quickly disconnect power when needed. Durability standards, such as weather resistance for outdoor setups, are also mandatory to maintain compliance over time. Additionally, proper labeling with NEC 230.85-compliant tags helps inspectors verify that the switch meets all safety and code requirements. Meeting these criteria not only safeguards personnel but also avoids costly violations during inspections.
Amperage and Voltage Ratings
Choosing the right amperage and voltage ratings for your NEC 230.85 emergency disconnect switch is essential to guarantee safety and reliable operation. The switch must be rated to handle the maximum load current of your circuit to prevent overheating or failure. It should also have a voltage rating equal to or higher than your system voltage, usually 240V or more, to ensure safe switching under normal and fault conditions. An undersized switch can’t safely interrupt fault currents, risking damage and safety hazards. To stay compliant with NEC standards, the ratings must match or exceed the electrical demands of your connected equipment and wiring. Properly selecting these ratings ensures your disconnect switch performs correctly, maintaining safety and protecting your system from potential electrical issues.
Waterproof and Durability Features
Selecting a waterproof and durable NEC 230.85 emergency disconnect switch is essential for reliable operation in outdoor or harsh environments. A switch with at least an IP66 rating offers protection against dust, rain, and hose-directed water, ensuring it can withstand the elements. Using materials like flame-retardant polycarbonate or corrosion-resistant metals helps maintain functionality over time, even in corrosive conditions. The enclosure must be weatherproof and tightly sealed to prevent water ingress during rain or splashes. Features like high-temperature resistance and protective coatings further extend the switch’s lifespan. A well-designed waterproof and durable switch guarantees consistent safety performance and electrical integrity, regardless of environmental challenges, making it a critical factor in selecting the right emergency disconnect for outdoor installations.
Ease of Installation
When installing an NEC 230.85 emergency disconnect switch, it’s important to take into account how easily it can be mounted and wired. Look for switches with appropriate mounting brackets and hardware that make installation straightforward on standard electrical panels. Make certain the enclosure is compatible with your environment, such as weatherproof ratings like IP66 for outdoor applications. Check that the wiring terminals are accessible and designed for the conductors you’ll use, simplifying connections. It’s also helpful if the switch has clear labeling or space for labels to ensure proper identification during installation. Additionally, switches with plug-and-play or quick-connect features can substantially reduce installation time and wiring complexity, making the process safer and more efficient.
Safety Lock Mechanisms
A critical aspect of NEC 230.85 emergency disconnect switches is their safety lock mechanism, which prevents accidental or unauthorized operation during maintenance or emergencies. A good lock should be compatible with padlocks of at least 6mm diameter, ensuring a secure lock during servicing. This mechanism not only safeguards personnel by keeping the switch in the intended position but also acts as a physical barrier against accidental activation. Durability is essential—look for locks resistant to environmental factors like dust, water, and vibration, so they stay effective over time. A reliable safety lock mechanism enhances safety, ensures compliance with NEC requirements, and provides peace of mind that the disconnect remains secure when needed most.
Material and Construction Quality
Choosing the right material and construction quality for an NEC 230.85 emergency disconnect switch is essential for ensuring long-term safety and reliability. I look for switches made from durable, flame-retardant materials that can withstand daily use and accidental impacts. The switch should resist environmental factors like moisture, dust, and corrosion, which can compromise its function over time. High-quality construction means better sealing and sturdy components, reducing the risk of failure. I also prioritize switches with robust enclosures that protect internal parts and ensure consistent operation. Ultimately, investing in a switch with superior material and build quality not only meets code requirements but also provides peace of mind, knowing the disconnect will perform reliably in emergency situations.
Environmental Suitability
Ensuring the environmental suitability of an NEC 230.85 emergency disconnect switch is crucial for reliable performance in various conditions. I look for switches with an IP66 or higher waterproof rating, especially for outdoor or harsh environments, to prevent water ingress. It’s also important to confirm the switch’s temperature range matches the installation site to avoid damage from extreme heat or cold. For outdoor or corrosive settings, I choose switches made from corrosion-resistant materials like stainless steel or UV-stabilized plastics. The enclosure must provide adequate protection against dust, mud, and debris specific to the environment. Finally, I verify the switch’s compliance with environmental standards such as UL or CE certifications, ensuring it meets safety and durability requirements for the intended application.
Frequently Asked Questions
What Are the Environmental Ratings Required for Emergency Disconnect Switches?
The environmental ratings required for emergency disconnect switches depend on their location. Typically, they should have an NEMA rating of at least NEMA 3 or higher if installed outdoors, providing protection against dust, rain, and corrosion. For indoor locations, a NEMA 1 rating usually suffices. I recommend checking specific environmental conditions and local codes to confirm your switch meets the necessary rating for safety and durability.
How Often Should Emergency Disconnect Switches Be Inspected or Tested?
You might wonder how often emergency disconnect switches need inspection—it’s every three months! Regular testing guarantees they work when needed, preventing failures during emergencies. I recommend recording each test to keep track of performance. Think of it as a safety dance—consistent checks keep everything in harmony, ready to protect you. Don’t skip these inspections; they’re your first line of defense, ensuring compliance and safety in critical moments.
Are There Specific Labeling Requirements for Emergency Disconnects per NEC?
Yes, the NEC requires emergency disconnect switches to be properly labeled. The labels must clearly indicate their purpose, such as “Emergency Disconnect” or “Emergency Stop,” and be durable enough to remain legible in all conditions. I always make certain these labels are visible, easy to read, and comply with NEC standards to guarantee safety and quick identification during emergencies. Proper labeling is vital for compliance and effective response.
Can Emergency Disconnect Switches Be Installed Outdoors or in Wet Locations?
Yes, emergency disconnect switches can be installed outdoors or in wet locations, but they must be rated for such environments. I always verify the switches meet the NEC requirements, like being weatherproof or suitable for damp locations. Proper enclosure and sealing are essential to prevent moisture ingress, guaranteeing safety and compliance. Always check the specific ratings and install them according to manufacturer instructions and local codes for maximum protection.
What Are the Consequences of Non-Compliance With NEC 230.85 Requirements?
Ignoring NEC 230.85 is like sailing without a compass—you risk running aground. Non-compliance can lead to hefty fines, legal issues, and safety hazards for everyone involved. It might also cause insurance claims to be denied if an accident occurs. I always remind clients that following these rules isn’t just about avoiding trouble; it’s about protecting lives and ensuring your project passes inspections smoothly.
Conclusion
Choosing the right NEC 230.85 emergency disconnect switch isn’t just about compliance—it’s about safety that you can rely on when it matters most. With so many options available, one overlooked detail could make all the difference in an emergency. Are you truly prepared to select the perfect switch that guarantees safety and peace of mind? Don’t leave it to chance—make sure your choice keeps everyone protected when seconds count.
